FASTENER INSERTION MACHINES
Quality, efficiency, damage reductions, labour saving
Features:
- The re-design rigid frame structure to eliminate the deformation during insertion press
- Easy to operate, humanized design pattern choice;
- 100% pressure safety system

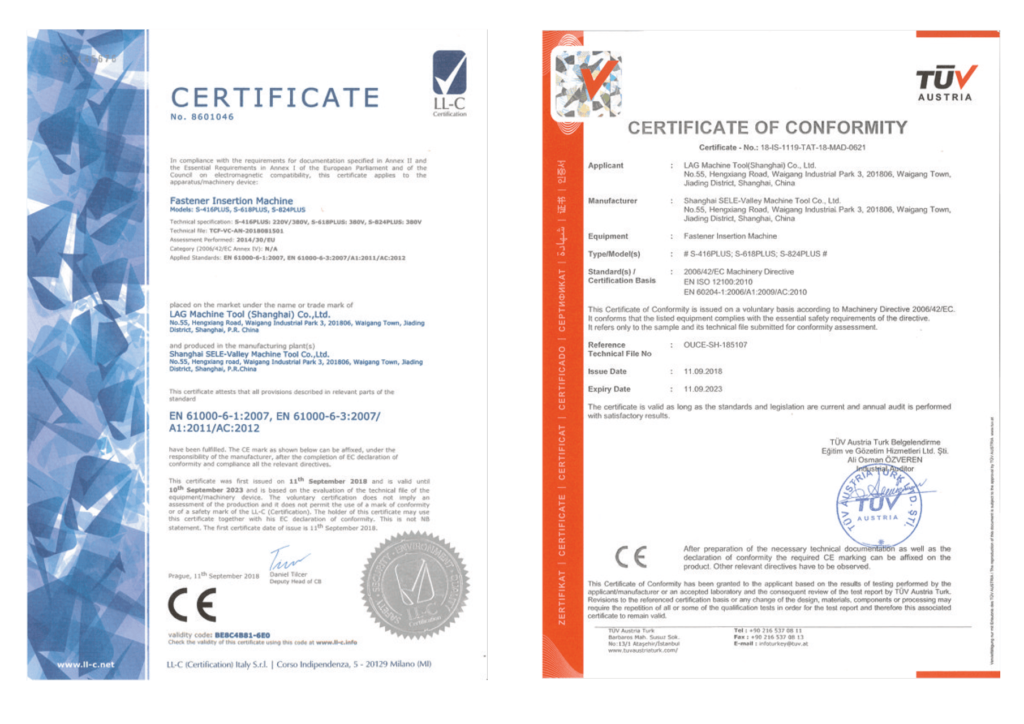

- use all CE standards of electric, hydraulic, pneumatic components
- LAG special design and precision machining of oil cylinder to ensure long-term stability even in poor working environment
- Hydraulic system adopt Taiwan Winner valve group ensure high reliability work 24 hours a day, according to the high pressure value stable repeat work requires the freedom to choose the dwell time ensure insertion 100% qualified
- can be equipped with automatic feeding system, clinching joint system

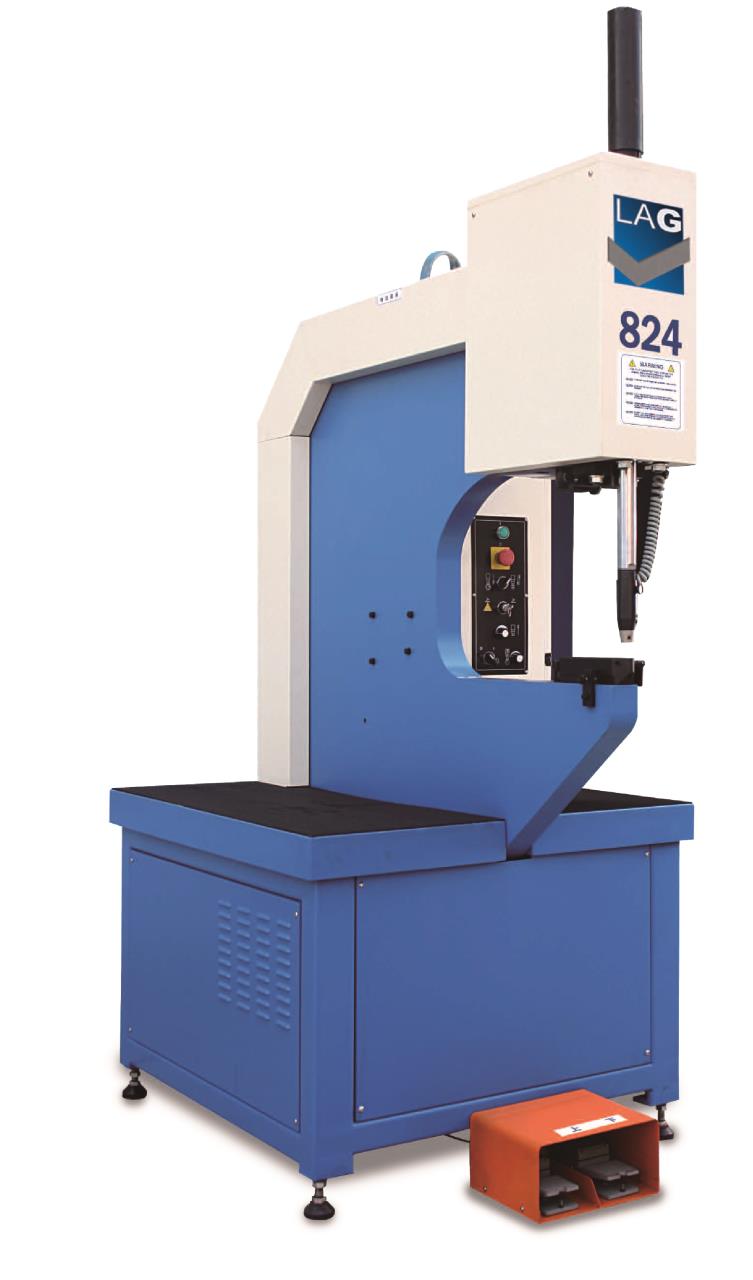

824 Plus
- 72KN force and 24 inch (610mm) throat depth;
- 100% safety system;
- Positive stop function is standard with the machine;
- Re-design Reliability and energy efficiency of a full hydraulic system, ensure the force repeatability +/-1%;
- Optional auto feeding system and the self-clinch tooling;
- Re-design strong C-frame to eliminate the deformation;
- Possibility to insert M12 nut with the mild steel;
- Variable dwell time for use with the stainless steel M8 nut and materials and the other hard materials
- Allow the operator to work fast and safety without use of protections;
- No lost of time due to the adjust of the safety system;
- The safety function is independent from the machine work;
- It is possible to adjust the power during the work without interfere with the safety system;
- The start of the working cycle is by pedal;
- None mechanical regulation during the safety set-up;
- Safety on the apply a constant and correct fastener power;
- Adjustable power in every point of the cylinder stroke
| PART NUMBER | DESCRIPTION |
|---|---|
|
S-000309 BW |
824 PLUS |
|
S-000364 |
MTS 33 Pieces Standard Tooling Package/33 |
|
S-X-X
S-000440 |
Automatic Tooling set
Autofeed modular |

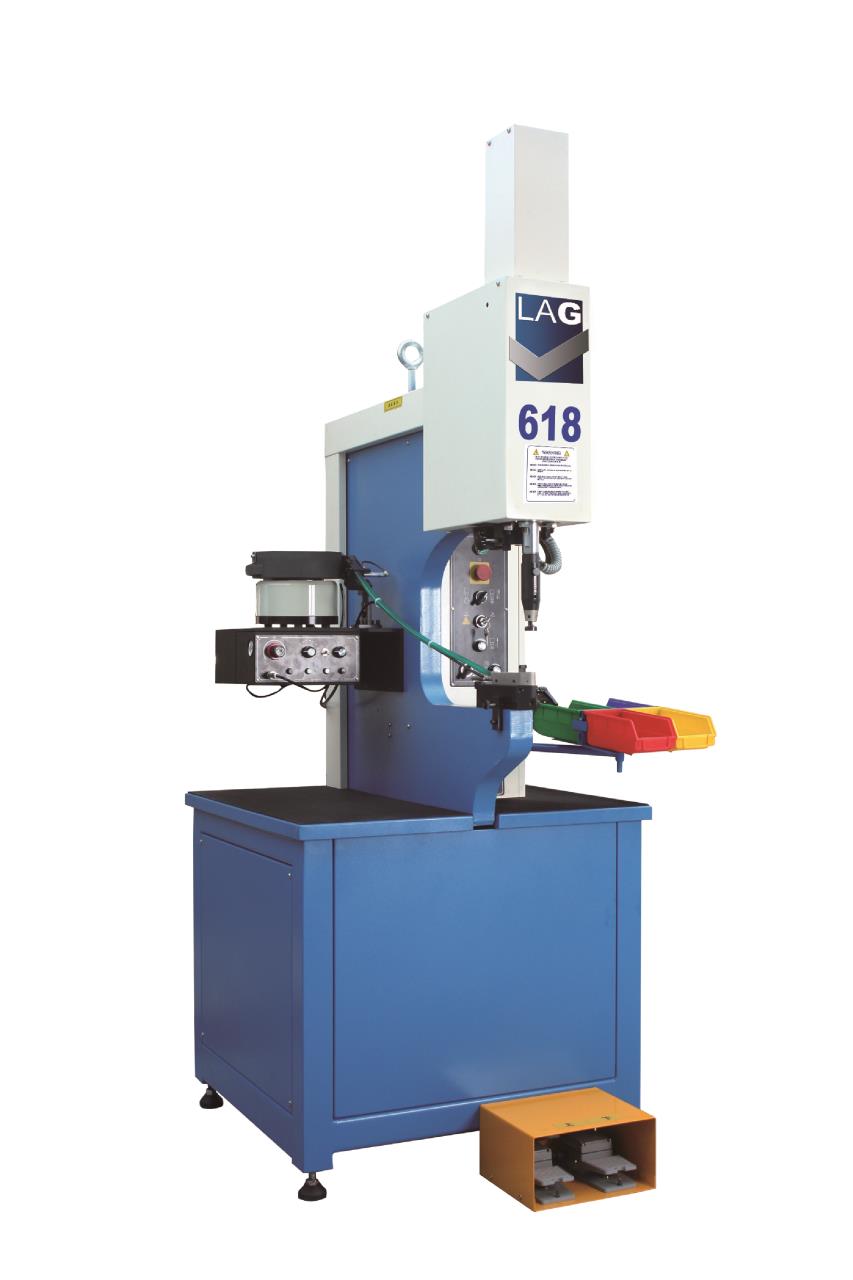

618 Plus
- High stiffness, structure, high stability, less vibration, high accuracy
- Ergonomic design frame and different size tooling package
- Quick press force setting and repeatability ±1%
- Ram force MAX 54KN
- Throat depth 358 mm
- 100% safety system
- Energy saving Re-design reliability and energy efficiency of a full hydraulic system
- Optional auto feeding system and clinching joint system
- Possibility to insert M10 nut with the mild steel
- Blue & white color
- Standard power supply 3 phase 380v/50hz
- Allow the operator to work fast and safety without use of protections;
- No lost of time due to the adjust of the safety system;
- The safety function is independent from the machine work;
- It is possible to adjust the power during the work without interfere with the safety system;
- The start of the working cycle is by pedal;
- None mechanical regulation during the safety set-up;
- Safety on the apply a constant and correct fastener power;
- Adjustable power in every point of the cylinder stroke
| PART NUMBER | DESCRIPTION |
|---|---|
|
S-000300 BW or S-000306 BW |
618 PLUS 618 Plus with positive stop cylinder |
|
S-000364 |
MTS 33 Pieces Standard Tooling Package/33 |
|
S-X-X
S-000440 |
Automatic Tooling set
Autofeed modular |

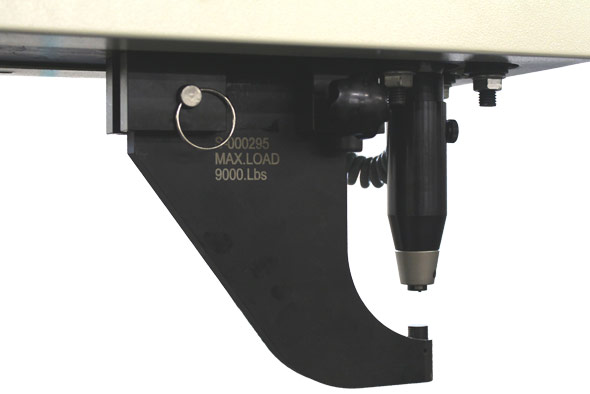

J Type Hook Braket

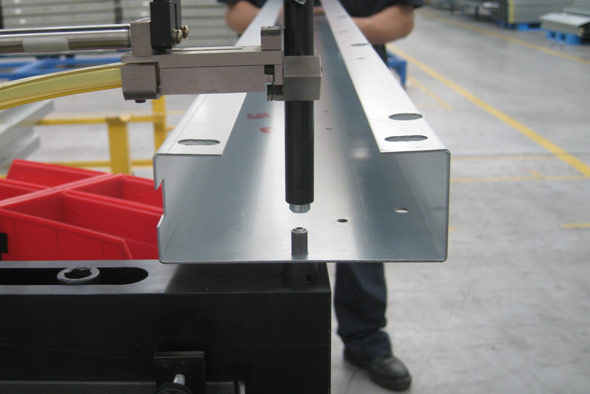

Allows fasteners to be fitted in sheet metal constructions with restricted accessibility.
Simple operation
Quick setting of the clinching force allows the machine to be set up within seconds.

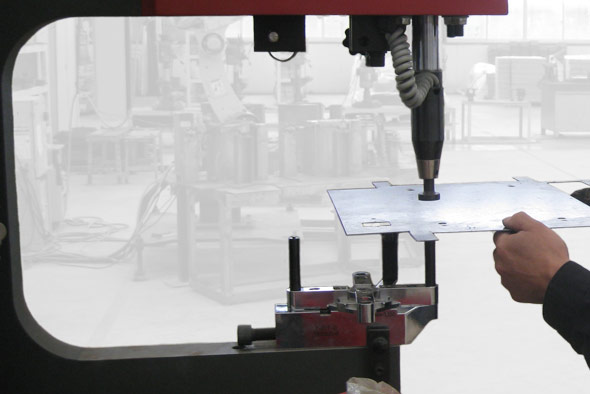

Fixed stop
The fixed stop enables the stopping position of the cylinder to be precisely set and to be maintained for all the subsequent fitting operations. This offers even better uniformity, particularly with soft workpieces.

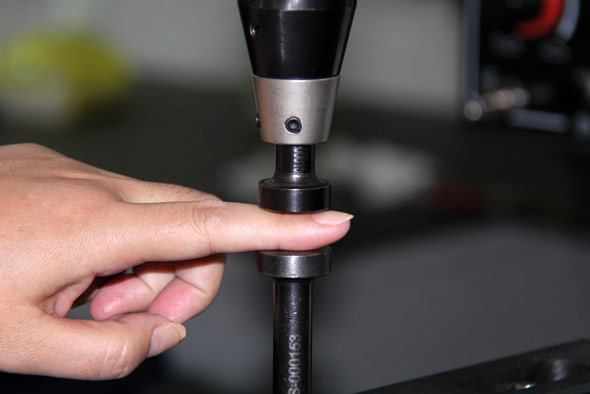

Safety system
Safe and reliable – The safety system of the clinching machines offers the operator total protection.
No loss of time due to resetting or adjustment of the safety system.
The safety system functions irrespective of the operating state of the machine for conductive and non-conductive workpieces.
It is possible to adjust the power during work without having to adjust the safety system.
Fasteners utilize self-clinching, broaching, flaring, surface mount, technology to provide strong, reusable, and permanent threads and mounting points in thin sheet metal, P.C. board materials and other ductile or non-ductile thin material.
Insertion machine is not a part of the manufacturing process where manufacturers want to invest a great deal of human resources. It is often monotonous work and can dramatically impact on production line quality and efficiency. The machine optimize labor, improve quality and increase productivity. The insertion machine also reduce part handing and part damage, and can be also customized to suit highly specialized applications.
LAG’s product represent a synthesis between the Italian technology innovation, attention to detail and design and the great Chinese production capacity. These values added with the best components in the world allow LAG to offer its customers the Press Brake with the best relationship between quality and price on the market
